Manual Single Channel Pipette, Pipette Supplier
Manual Single Channel Pipette, Pipette Supplier

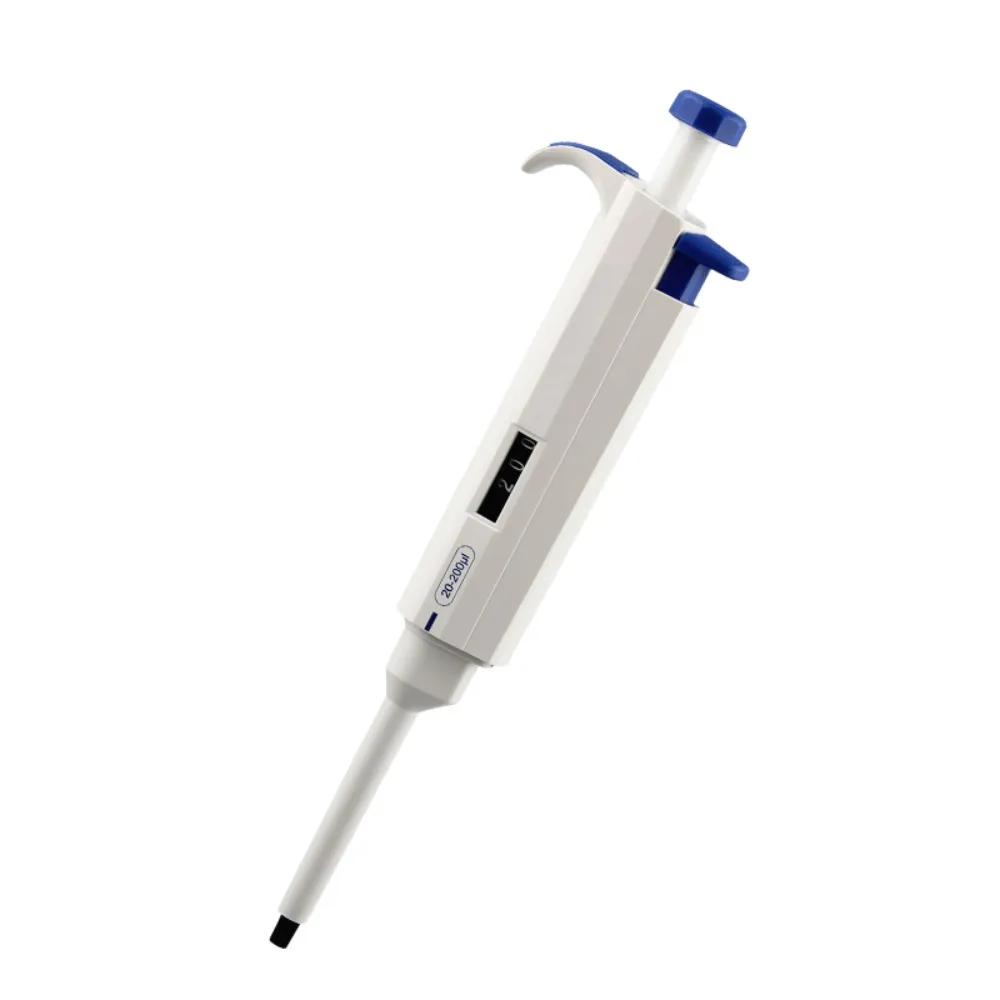

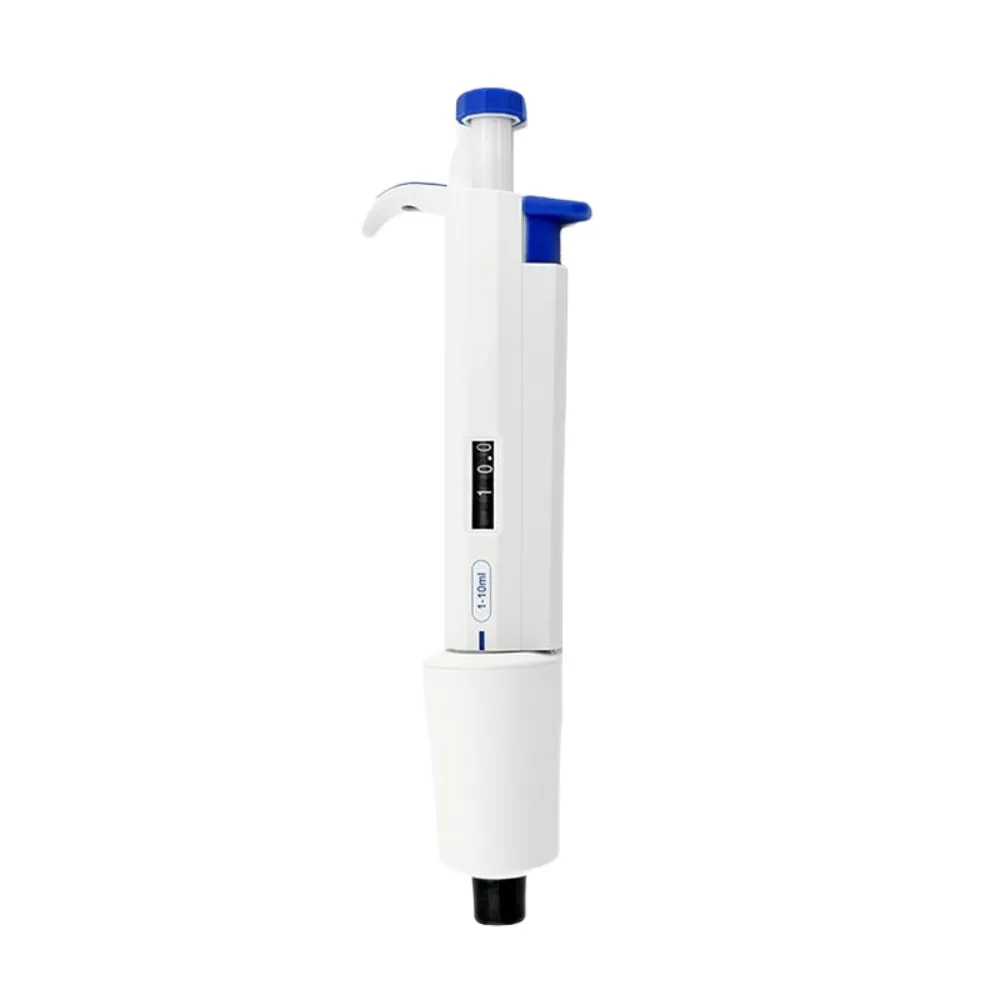

The manual single channel pipette is ergonomically designed, with a wider range of adjustable volumes and high precision. It is impact-resistant, UV-resistant and chemical corrosion-resistant. The tip components are made of specific materials, which can be disassembled for high-temperature and high-pressure sterilization, and support independent volume calibration.
SPECIFICATIONS
Technical Parameters
Product Description:
– Automation Level: Manual Pipette
– Instrument Type: Single-channel Pipette
– Application Fields: Medical and health care, chemical industry, biological industry, pharmaceutical/biopharmaceutical, comprehensive field
Technical Parameter:
| model | Specification | Increment | Measuring point | Maximum allowable error | Maximum allowable error |
| Inaccuracy | Inaccuracy | ||||
| μL | % | % | |||

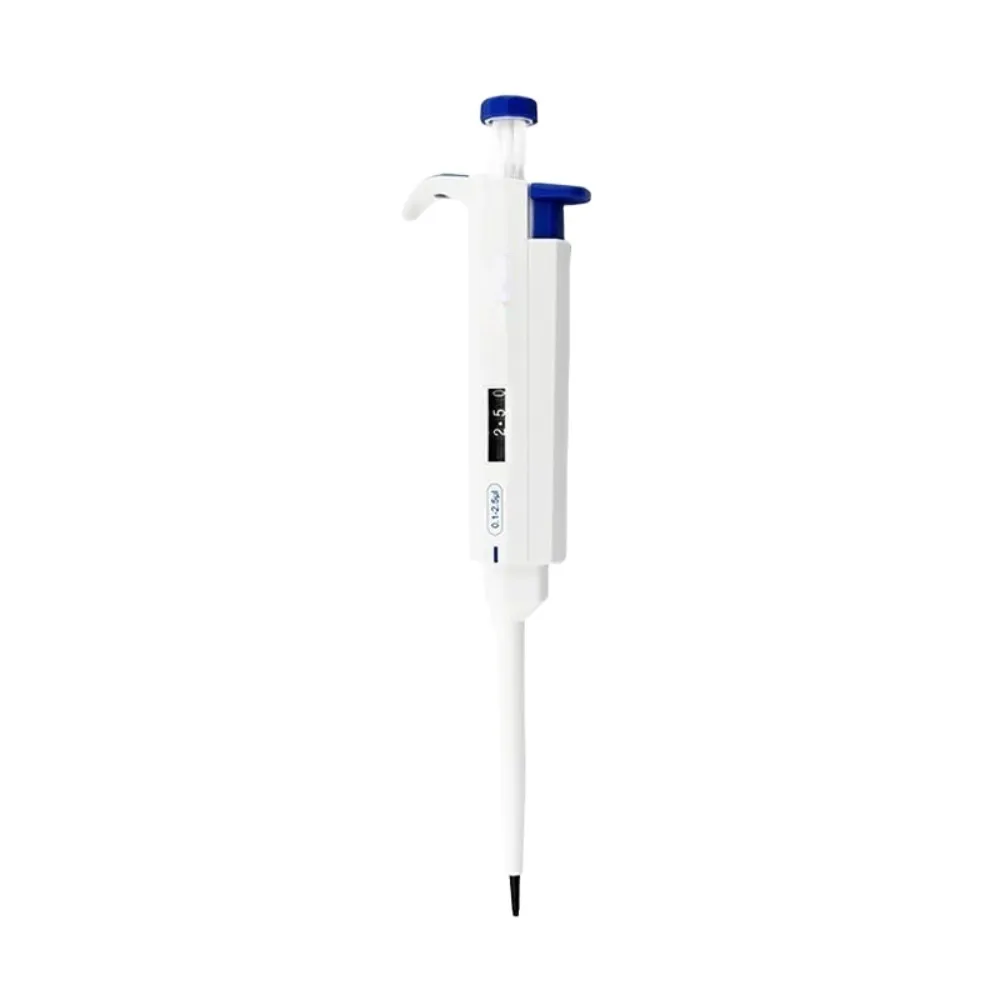

| 0.1~2.5μL | 0.1~2.5μL | 0.05μL | 1.25μL | ±3.00% | 3.00% |
| 0.25μL | ±12.00% | 6.00% | |||
| 0.5~10μL | 0.5~10μL | 0.1μL | 10μL | ±1.00% | 0.80% |
| 5μL | ±1.50% | 1.50% | |||
| 1μL | ±2.50% | 1.50% | |||

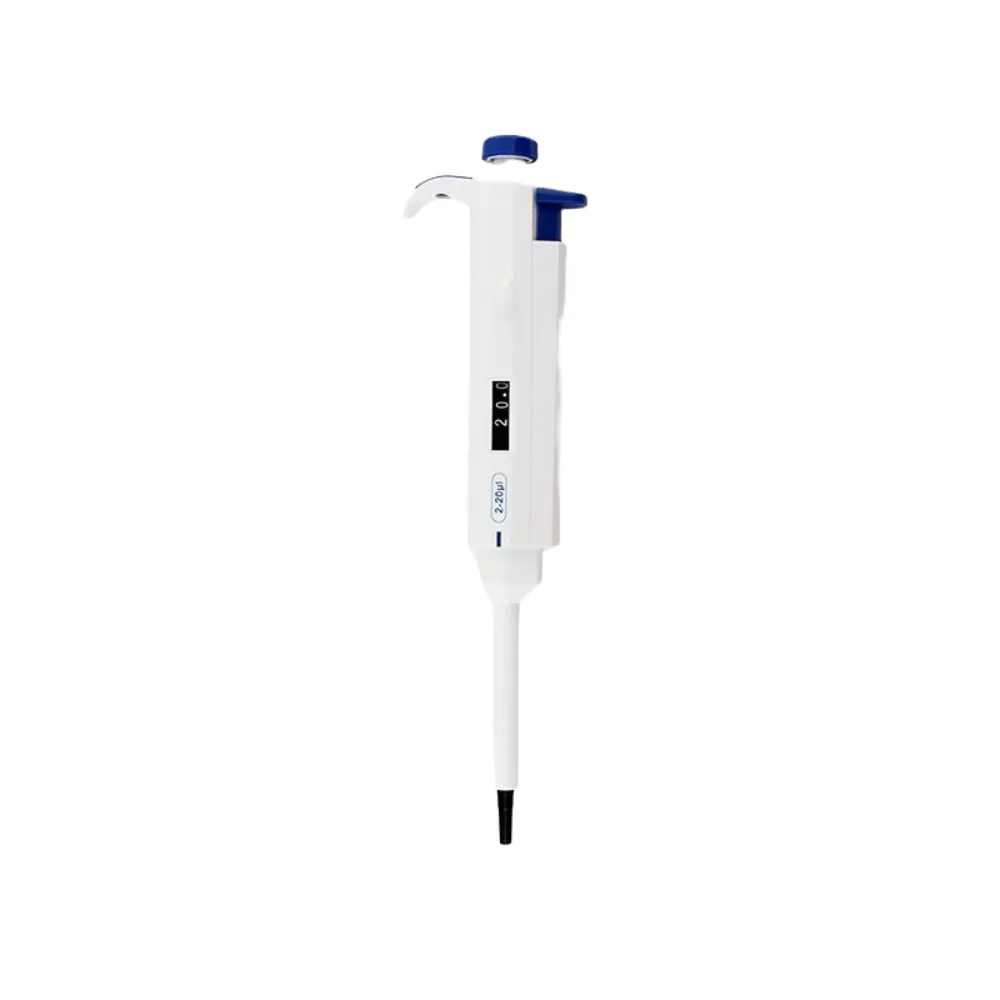

| 2~20μL | 2~20μL | 0.5μL | 20μL | ±0.90% | 0.40% |
| 10μL | ±1.20% | 1.00% | |||
| 2μL | ±3.00% | 2.00% | |||

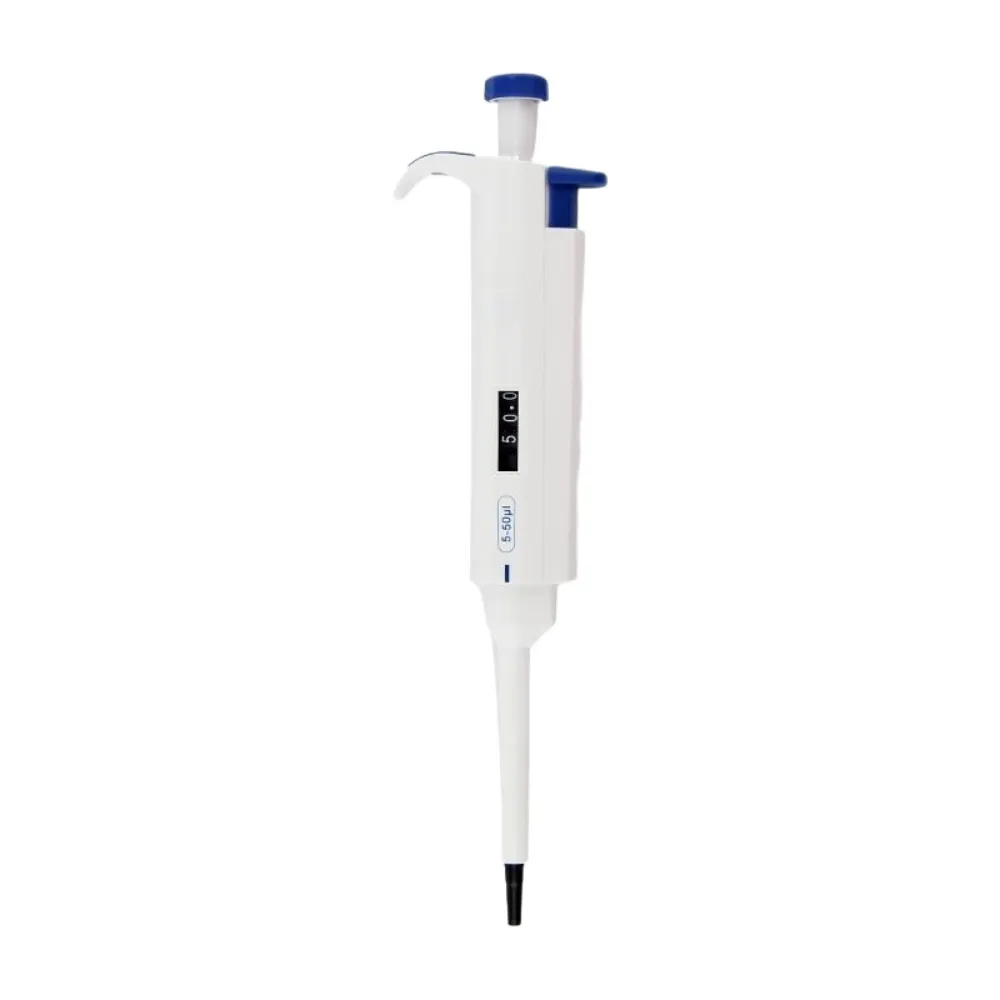

| 5~50μL | 5~50μL | 0.5μL | 50μL | ±0.60% | 0.30% |
| 25μL | ±0.90% | 0.60% | |||
| 5μL | ±2.00% | 2.00% | |||

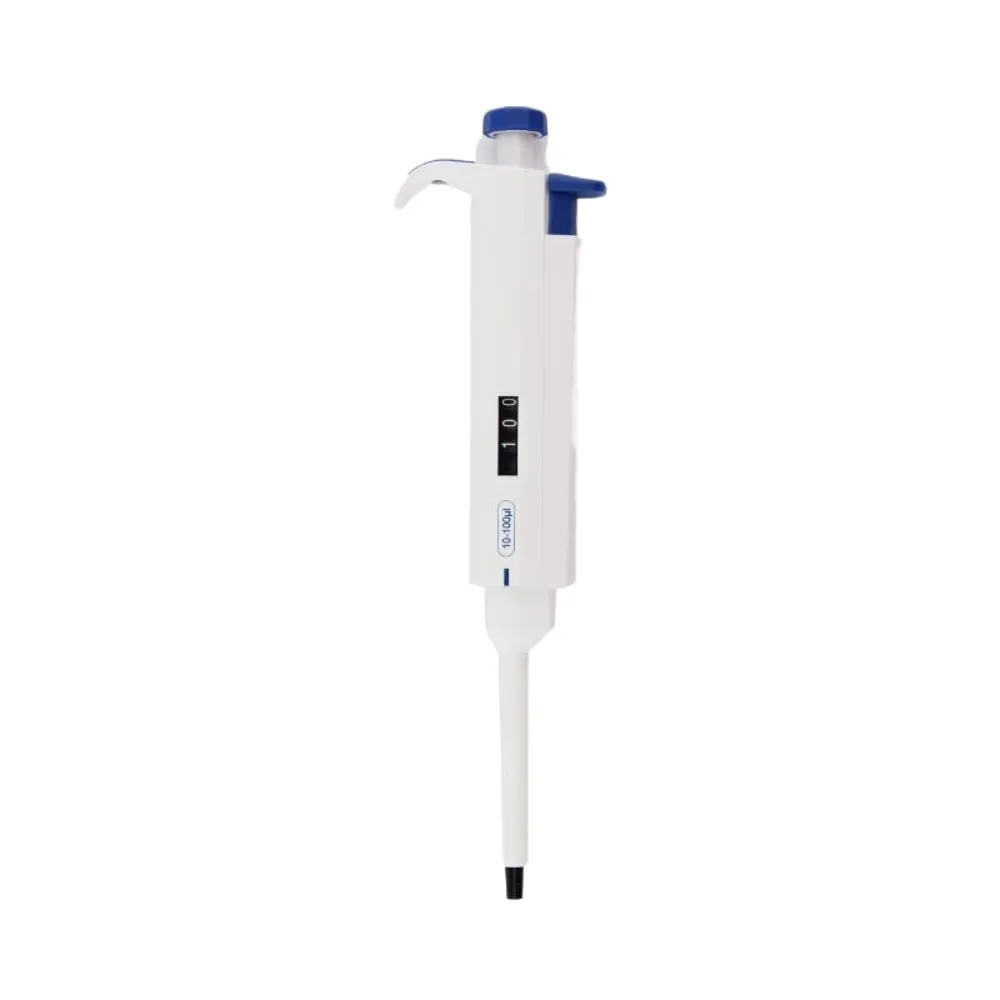

| 10~100μL | 10~100μL | 1.0μL | 100μL | ±0.80% | 0.20% |
| 50μL | ±1.00% | 0.40% | |||
| 10μL | ±3.00% | 1.00% | |||

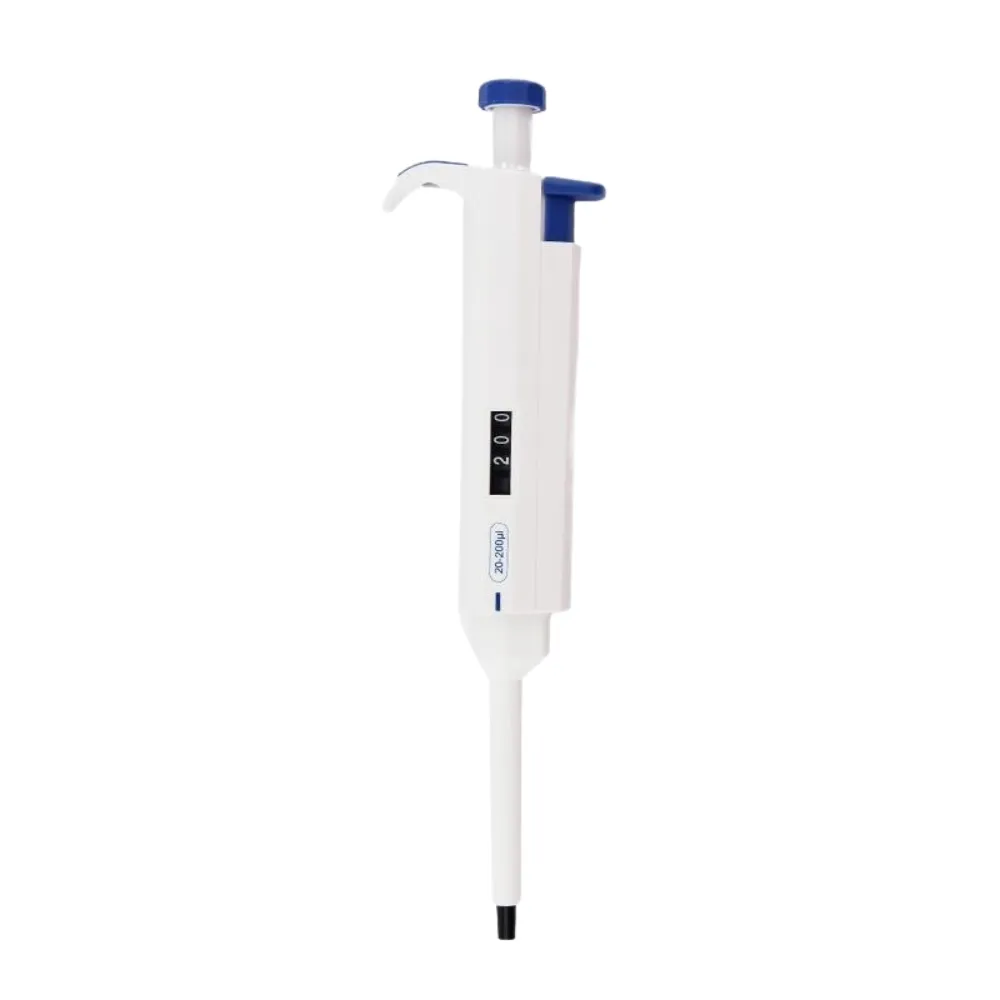

| 20~200μL | 20~200μL | 1.0μL | 200μL | ±0.60% | 0.20% |
| 100μL | ±0.80% | 0.30% | |||
| 20μL | ±2.50% | 0.80% | |||
| 100~1000μL | 100~1000μL | 5.0μL | 1000μL | ±0.60% | 0.20% |
| 500μL | ±0.70% | 0.25% | |||
| 100μL | ±2.00% | 0.70% | |||

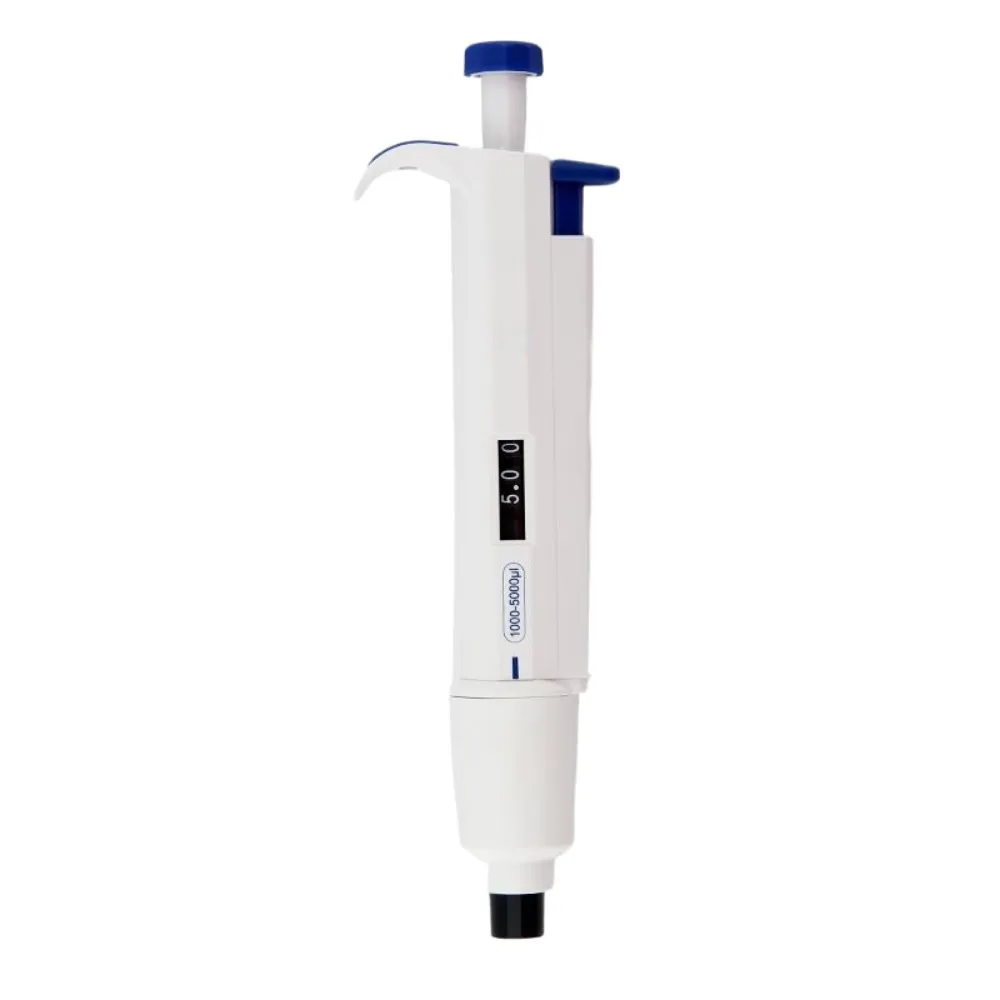

| 1000~5000μL | 1000~5000μL | 50.0μL | 5000μL | ±0.50% | 0.20% |
| 2500μL | ±0.60% | 0.30% | |||
| 1000μL | ±0.70% | 0.30% | |||
| 1~10ml | 1~10ml | 100μL | 10000μL | ±0.60% | 0.20% |
| 5000μL | ±1.20% | 0.30% | |||
| 1000μL | ±3.00% | 0.60% |
The lockable volume controller reduces the number of rotations by 50%. During manual operation, the relevant display is visible.
FEATURES
Customization Advantages
Precision engineering for complex medical applications
Geometry Expertise
J-hooks, helical coils, side ports, multi-lumen structures, or patient-specific bends. Micro-barb retention elements, fluid channels (≥50μm ID), or directional drug delivery windows.
Advanced Manufacturing
Laser micromachining precision ±5μm. Electroforming for seamless tapered transitions. Nitinol shape-memory integration for steerable functionality.
Rapid Prototyping
Surgical-grade steel / PEEK 3D-printed prototypes delivered within 72 hours. CFD and structural simulation reports to accelerate product validation.
Ready to Discuss Your Custom Requirements?
RELATED PRODUCTS
Related Products
Related products
FAQs
Q: What is a single channel pipette?
A: Manual single-channel pipettes are single-channel laboratory devices used in conjunction with disposable pipette tips to exactly transfer measured quantities of liquids. Products include repeating pipettes and positive-displacement products.
Q: What are manual pipettes?
A: Single Channel, Multichannel, and Adjustable Spacer Multichannel Mechanical Pipettes. A manual pipette is a handheld instrument used in life science laboratories to accurately measure and dispense microvolumes of liquids between multi-well plates, microtubes, and reservoirs.
Q: What is a single channel pipette also known as?
A: A single-channel pipette, also referred to as a single-channel micropipette, is used to aspirate and dispense a measured amount of liquid. As it contains a single channel, it can transfer one aliquot at a time and is therefore mostly used for low-throughput laboratory applications.
Q: How to calibrate a manual pipette?
A: Steps Involved in the Calibration of Your Pipette： Place a weigh boat on a balance that can accurately weigh in the microgram range, and set it to zero after closing the balance door. Pre-rinse the tip by aspirating and dispensing the set volume three times, and push it fully to remove any remaining liquid.
