Adjustable-volume glass micro burette 5ml/10ml
Adjustable-volume glass micro burette 5ml/10ml
The Adjustable-volume glass micro burette, featuring a 5ml/10ml micro piston, undergoes precision grinding and screening, offering strong sealing performance, high accuracy, and minimal repeatability error. It can withstand high-temperature and high-pressure sterilization at 120°C/250°F and is resistant to corrosive liquids, including acids, alkalis, and salts.
SPECIFICATIONS
Technical Parameters
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Adjustable-volume Glass Micro Burette |
| Volume Range | 0.1 ml – 5 ml / 0.2 ml – 10 ml (adjustable) |
| Volume Adjustment | Micro piston with precision screw mechanism |
| Accuracy (Systematic Error) | ±0.5% of nominal volume (ISO 8655 compliant) |
| Precision (CV / Repeatability) | ≤0.2% at full volume; ≤0.4% at partial volume |
| Material (Burette Body) | High-quality borosilicate glass, resistant to acids, alkalis, and salts |
| Material (Piston / Seal) | Precision-ground glass piston with PTFE sealing ring for strong sealing performance |
| Graduation | High-contrast, permanent graduations (easy readability) |
| Sterilization | Autoclavable at 120 °C / 250 °F (high-pressure steam sterilization) |
| Chemical Resistance | Resistant to corrosive solutions, organic solvents, acids, alkalis, and salts |
| Temperature Tolerance | -20 °C to +120 °C |
| Repeatability Error | Minimal, ≤0.1 ml for 5 ml burette, ≤0.2 ml for 10 ml burette |
| Safety Features | Smooth grinding for leak-free operation; anti-drip tip |
| Packaging | Individually packed with protective casing |
| Certifications | ISO 8655, CE, GMP-compliant manufacturing |
| Shelf Life | Long-term durability under proper lab maintenance |
Adjustable-volume glass micro burette parameter:

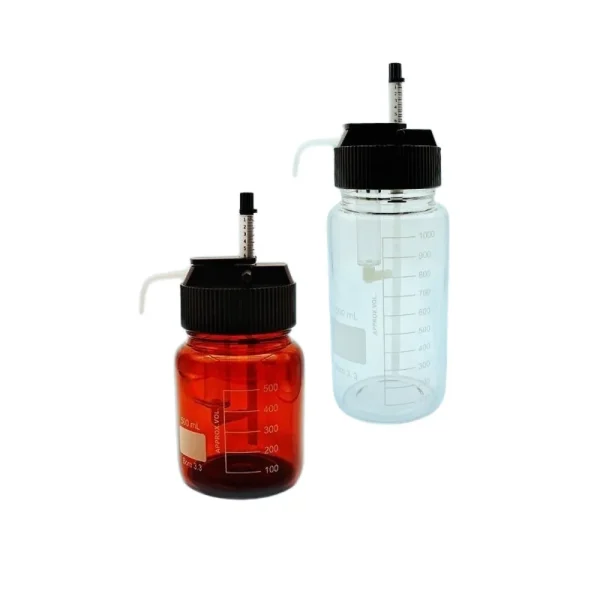

- Product colors: white bottle、brown bottle
- Product material: borosilicate glass
- Product features: resistant to high-temperature and high-pressure sterilization; compatible with corrosive liquids such as acids, alkalis and salts; detachable.
- Application fields: suitable for continuous quantitative liquid addition in laboratories and testing rooms, and can be used in the petroleum and chemical industries, medical and healthcare fields, metallurgy, scientific research, environmental protection, and other relevant areas.
FEATURES
Customization Advantages
Precision engineering for complex medical applications
Geometry Expertise
J-hooks, helical coils, side ports, multi-lumen structures, or patient-specific bends. Micro-barb retention elements, fluid channels (≥50μm ID), or directional drug delivery windows.
Advanced Manufacturing
Laser micromachining precision ±5μm. Electroforming for seamless tapered transitions. Nitinol shape-memory integration for steerable functionality.
Rapid Prototyping
Surgical-grade steel / PEEK 3D-printed prototypes delivered within 72 hours. CFD and structural simulation reports to accelerate product validation.
Ready to Discuss Your Custom Requirements?
RELATED PRODUCTS
Related Products
Related products
FAQs
Q: What is a micro burette?
A: Category: LAB TOOLS. Sub-Category: GLASSWARE. A micro burette in engineering testing laboratories is a smaller, more precise version of a standard burette, used for dispensing very small volumes of liquid in titration or other precise liquid measurement experiments.
Q: Does burette measure fixed volume?
A: Volumetric pipettes are specially calibrated to deliver a fixed volume of solution. You fill the pipette with a pipette filler to the fill mark, then release the solution into a conical flask. Burettes are graduated (they have measurement lines) and deliver a variable volume of solution.
Q: What is a burette used to measure the volume of?
A: burette, laboratory apparatus used in quantitative chemical analysis to measure the volume of a liquid or a gas. It consists of a graduated glass tube with a stopcock (turning plug, or spigot) at one end.
Q: What are the different types of glass burettes?
A: There are two main types of burette; the volumetric burette and the piston burette. A volumetric burette delivers measured volumes of liquid. Piston burettes are similar to syringes, but with a precision bore and a plunger. Piston burettes may be manually operated or may be motorized.
Q: Why is a burette better than a pipette?
A: Unlike a burette, the pipette is not intended to measure the volume of liquid used, but rather to ensure the volume delivered. In chemistry, a burette is a cut-glassware used in the Laboratory to deliver volumes of liquid, especially during Titrations.
