Follicular Puncture Needle
Follicular Puncture Needle
Available as single-lumen needles or dual-lumen flushing sets, these cannulas are fabricated from ultra-smooth,thin-wall medical stainless steel tubing for transvaginal ovum retrieval in ART procedures. They are precision-machined on automated Japanese equipment to protect oocyte-cumulus complex integrity.
SPECIFICATIONS
Technical Parameters
| Parameter | Value / Description |
|---|---|
| Product Name | Follicular Puncture Needle |
| Material – Cannula | High-quality medical-grade SUS304 stainless steel |
| Needle Gauge Options | Typically 16G–19G (standard IVF range) |
| Outer Diameter (OD) | ~1.6 mm (16G), ~1.4 mm (17G), ~1.2 mm (18G), ~1.0 mm (19G) |
| Needle Length Options | 300 mm ± 5 mm (standard); customizable lengths available |
| Tip Design | Double-edged inverted triangle, precision-ground for sharpness and smooth puncture |
| Ultrasound Marker | Enhanced echogenic marking near tip for clear visualization during ultrasound |
| Wall Finish | Mirror-level smoothness on inner and outer walls to reduce friction and trauma |
| Hub Type | Standard Luer-lock connection |
| Aspiration Compatibility | Optimized for IVF aspiration pumps and syringes |
| Sterilization Method | Ultraclean Washing & Degreasing |
| Packaging | Individually sterile blister packs; 10–20 pcs per box |
| Single-Use | Yes |
| Certification | ISO 13485, CE marking, FDA (region-dependent) |
| Shelf Life | 3–5 years under recommended storage conditions |
Follicular Puncture Needle: Precision Engineered for Atraumatic Oocyte Retrieval
Follicular Puncture Needle Clinical Purpose
Our follicular puncture needle(ovum pick-up needle) enables ultra-precise follicular puncture during transvaginal ultrasound-guided IVF procedures. Designed for maximal oocyte viability and minimal tissue trauma, it ensures efficient retrieval of intact cumulus-oocyte complexes (COCs) critical for successful assisted reproduction.
Key Advantages
Ultra-Sharp Multi-Bevel Tip
Precise micro-bevel geometry minimizes penetration
resistance across the vaginal wall and ovarian capsule, reducing bleeding and trauma.
Mirror-Finish Inner Lumen
Ultra-low internal surface roughness minimizes fluid shear stress under aspiration vacuum, preventing mechanical damage to oocytes and cumulus-oocyte complexes.

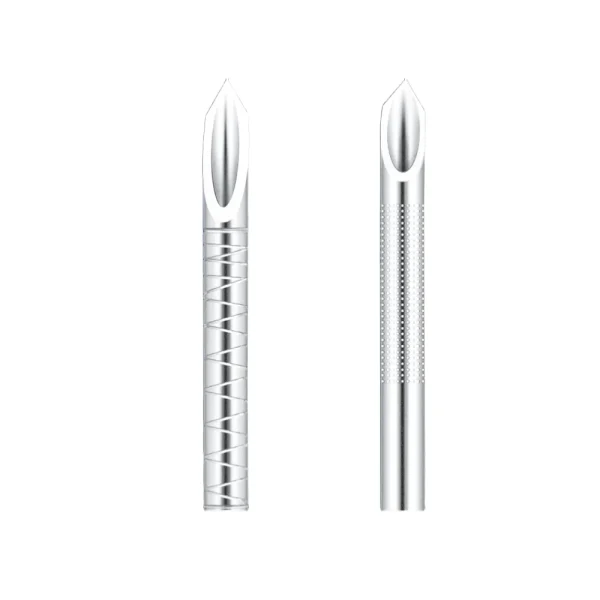

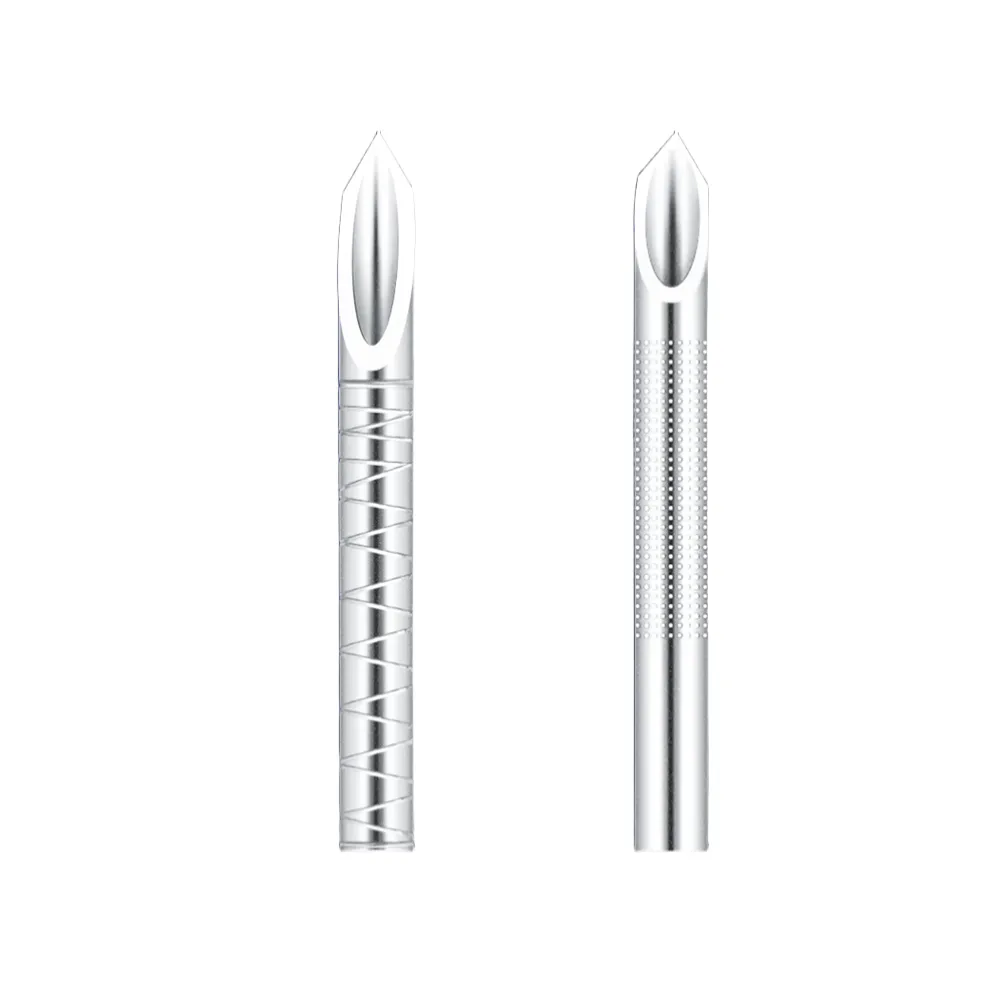

High-Visibility Echogenic Tip
Distal micro-etched or sandblasted bands provide distinct,
blind-spot-free visualization under transvaginal ultrasound.
Ultraclean Washing &Endotoxin Control
Multi-stage ultrasonic cleaning and WFI rinsing ensure endotoxin and particulate levels satisfy stringent reproductive medicine standards.
Thin-Wall High-Flow Geometry
Maximizes internal aspiration throughput without compromising needle column puncture rigidity.
Critical Applications
Transvaginal ultrasound-guided oocyte retrieval
Natural cycle IVF procedures
Ovarian follicle aspiration
Embryo transfer fluid management
Quality Control(ISO 13485 QMS)
100%High-Speed Online Vision Inspection
Real-time verification and auto-rejection for bevel geometry, length, burrs, and echogenic band dimensions.
Micro-Cleanliness, Particulate & Endotoxin Audits
Lot testing for surface oils, micro-debris, and bacterial endotoxin levels.
Full-Dimension & Penetration Testing
Tight control over OD/ID tolerances, wall uniformity, and batch penetration performance.
FEATURES
Customization Advantages
Precision engineering for complex medical applications
Geometry Expertise
J-hooks, helical coils, side ports, multi-lumen structures, or patient-specific bends. Micro-barb retention elements, fluid channels (≥50μm ID), or directional drug delivery windows.
Advanced Manufacturing
Laser micromachining precision ±5μm. Electroforming for seamless tapered transitions. Nitinol shape-memory integration for steerable functionality.
Rapid Prototyping
Surgical-grade steel / PEEK 3D-printed prototypes delivered within 72 hours. CFD and structural simulation reports to accelerate product validation.
Ready to Discuss Your Custom Requirements?
RELATED PRODUCTS
Related Products
Related products
FAQs
Q: What kind of needle is used for follicular puncture needle?
A: Traditionally, 19-gauge needles have been used for follicular puncture procedures in IVF treatments. However, smaller needles offer significant benefits, as they reduce the risk of puncturing follicles.
