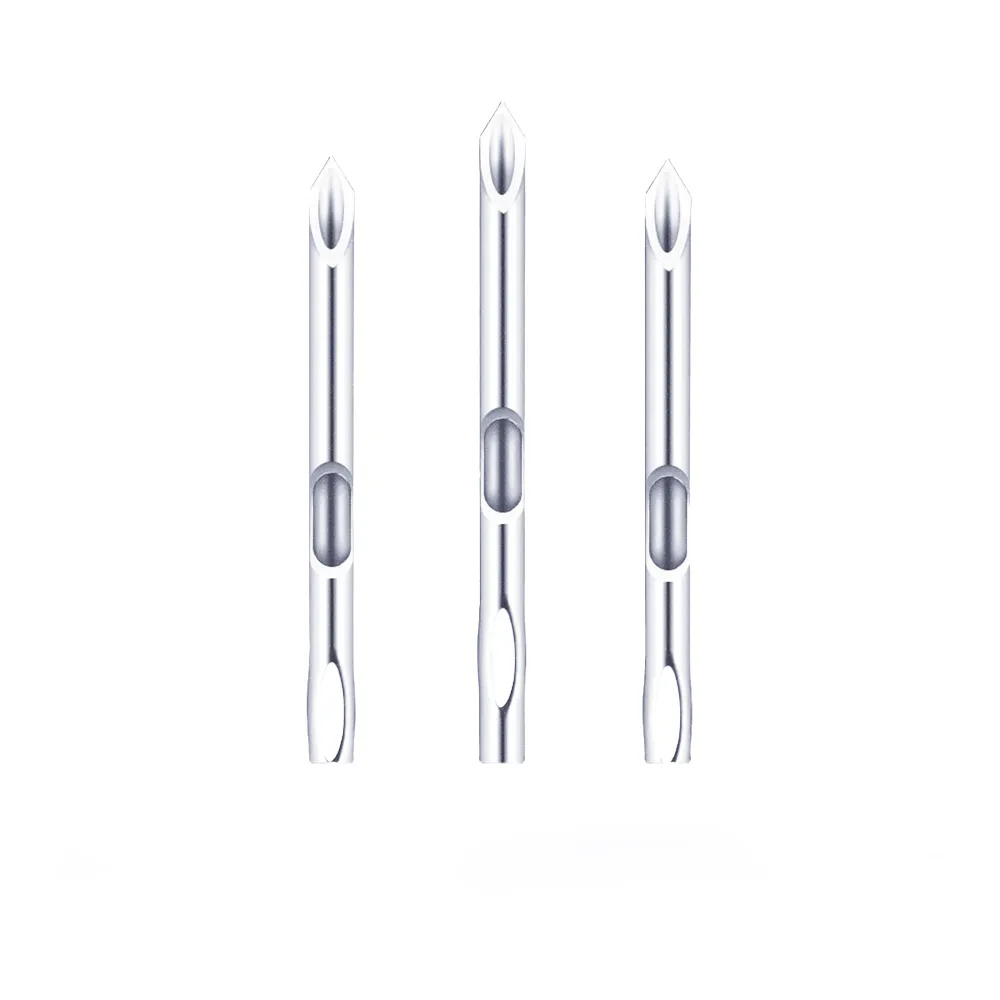

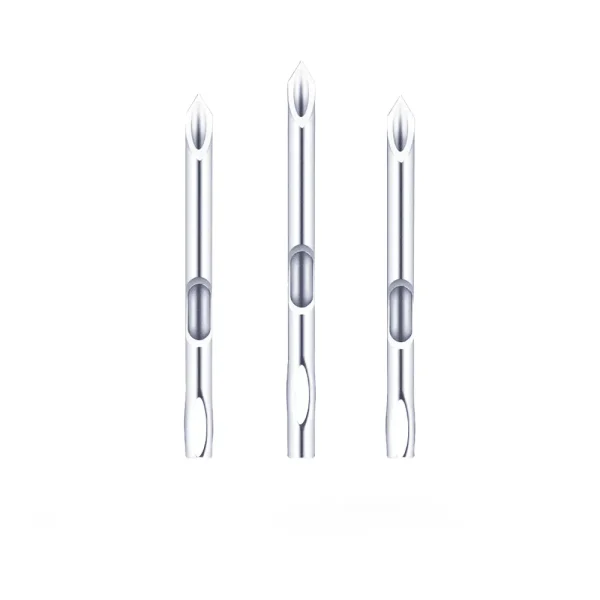

IV Catheter Cannula
IV Catheter Cannula
Manufactured from medical-grade stainless steel tubing, IV catheter cannula components are precision-machined on Japanese high-precision, fully automated grinding machines, ensuring stable quality and superior performance consistency
SPECIFICATIONS
Technical Parameters
| Parameter | Specification |
|---|---|
| Product Name | IV Catheter Cannula |
| Material – Cannula | Medical-grade SUS304 stainless steel needle with PTFE / PU catheter tube |
| Gauge Range | 14G – 24G (OD: 2.0 mm – 0.6 mm) |
| Catheter Length Options | 19 mm – 45 mm (±1 mm tolerance) |
| Tip Design | Tri-beveled ultra-sharp tip; smooth puncture with reduced patient pain |
| X-ray Visibility | Radiopaque catheter strip for fluoroscopic detection |
| Blood Control Feature | Optional backflow chamber for venous access confirmation |
| Catheter Material | Biocompatible PTFE / Polyurethane, kink-resistant, DEHP-free |
| Hub Design | Transparent hub with color-coded gauge indicator |
| Safety Options | With or without safety mechanism (passive/active needle retraction) |
| Sterilization Method | Ultraclean Washing & Degreasing |
| Packaging | Individually sterile blister packs, 50–100 pcs per box |
| Single-Use | Yes |
| Certifications | ISO 13485, CE marking, FDA approval (region dependent) |
| Shelf Life | 3–5 years under recommended storage conditions |
IV Catheter Cannula: Advanced Vascular Access for Sustained Therapy Delivery.
IV Catheter Cannula Clinical Purpose
Our indwelling needles provide secure, long-term vascular access for intravenous fluid administration, medication delivery, and blood sampling. Engineered for indwelling durations up to 96 hours, they minimize repeated punctures in critical care, oncology, and pediatric settings.
Product Specification:
1. Product type: Y-type, straight type, safety type, retraction type, indentation.
2.Specification:10G-28G
3.OD:3.4mm-0.36mm
Key Advantages
Precision Back-Bevel Grinding
Tightly controlled bevel symmetry and edge sharpness between the primary bevel and back-bevels deliver ultra-low penetration resistance, significantly reducing the risk of vessel blowout and tissue trauma.
Ultraclean Washing & Degreasing
Multi-stage ultrasonic cleaning and Water for Injection (WFI) rinsing thoroughly eliminate processing lubricants and metallic microparticles, complying with medical-grade biosafety standards.
Zero-Burr & Non-Flared Tip Control
Micro-edges are clean and uniform, completely free of burrs, roll-overs, or tip eccentricity.
Ultra-Tight Tolerances & Superior Straightness
Strict tolerances for OD, ID, wall thickness, and straightness guarantee seamless, uniform assembly with catheter tubes and needle hubs.
Custom End Chamfering & Cut-to-Length
Customizable tube lengths, side slotting, proximal end chamfering, and sandblasting to customer prints.
Clinical Applications
– Continuous chemotherapy infusion
– Emergency fluid resuscitation
– Long-term antibiotic therapy
– Neonatal/Pediatric IV access
Quality Control(ISO 13485 QMS)
100% High-Speed Online Vision Inspection
Real-time automated inspection and rejection for tip geometry, bevel length, eccentricity, fishhooks, and edge burrs.
Micro-Cleanliness & Particulate Monitoring
Regular lot testing for surface residual oils and microscopic particulate levels.
Full-Dimension & Penetration Force Verification
Rigorous verification of OD, wall thickness tolerances, and lot penetration forces to ensure stable product consistency.
FEATURES
Customization Advantages
Precision engineering for complex medical applications
Geometry Expertise
J-hooks, helical coils, side ports, multi-lumen structures, or patient-specific bends. Micro-barb retention elements, fluid channels (≥50μm ID), or directional drug delivery windows.
Advanced Manufacturing
Laser micromachining precision ±5μm. Electroforming for seamless tapered transitions. Nitinol shape-memory integration for steerable functionality.
Rapid Prototyping
Surgical-grade steel / PEEK 3D-printed prototypes delivered within 72 hours. CFD and structural simulation reports to accelerate product validation.
Ready to Discuss Your Custom Requirements?
RELATED PRODUCTS
Related Products
Related products
FAQs
Q: What is an indwelling needle?
A: An indwelling needle used for infusion or the like ordinarily has a double-needle structure composed of an outer needle and an inner needle. Upon its use, the indwelling needle is pierced into a blood vessel in a state where the inner needle is positioned in a lumen of the outer needle.
Q: What is the difference between an indwelling and a Foley?
A: A Foley catheter is a specific type of indwelling catheter; therefore, the terms are not mutually exclusive. Indwelling is the general category for any catheter left inside the bladder, while a Foley refers to a specific, popular design of indwelling catheter that uses an inflatable balloon to stay in place.
Q: What type of syringe is needed for an indwelling catheter removal?
A: Before you remove your catheter, gather all of the supplies you will need, including the syringe and an absorbent pad. You will be given the same-sized syringe that was used to inflate the balloon. Most syringes will be labelled 5 or 10 cc.
Q: How many types of indwelling catheters are there?
A: An indwelling catheter is a catheter that stays inside the body for a longer period, and there are two types. A urethral indwelling catheter is a catheter inserted through the urethra into the bladder, while a suprapubic indwelling catheter is inserted through the abdomen directly into the bladder.
